Rear center armrest and ashtray, assembly overview: Notes

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

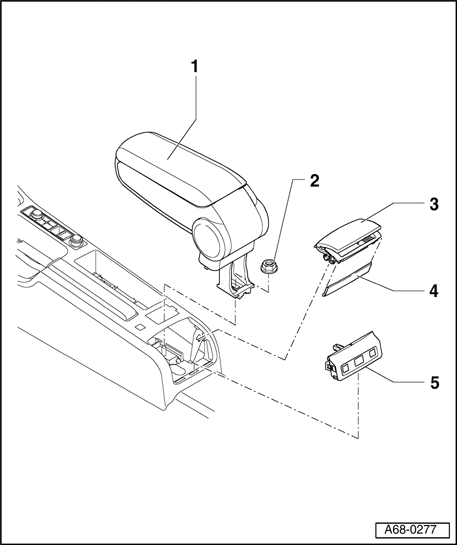

Fig 1: Rear Center Armrest And Ashtray, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Center armrest

Removing

Remove rear ashtray - 3 -.
Remove nut - 2 - in ashtray well.
On center armrest with telephone, disconnect telephone connector.
Remove center armrest - 1 -.

2 - Nut

Tightening torque 26 Nm

3 - Rear ashtray

Removing

Unclip lid - 4 -.
Detach ashtray at rear - 3 -.
If installed, unclip mount for seat heating switch - 5 -.

4 - Cover

5 - Mount for switch

Removing and installing Removing and installing mount for switch
