Insulation compartment, removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

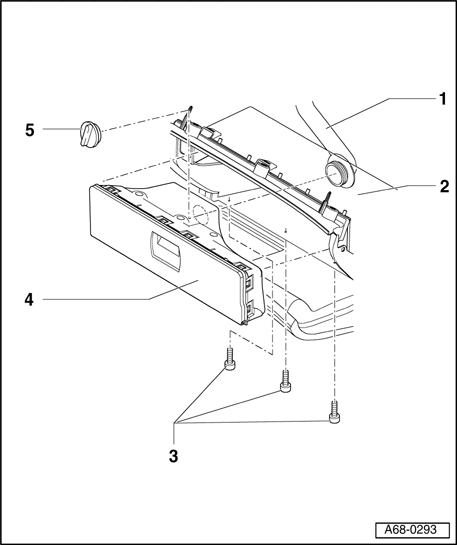

Fig 1: Insulation Compartment Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cold air hose

2 - Glove compartment

3 - Bolts (3x)

Tightening torque 0.6 Nm

4 - Insulation box

Removing

Remove vent - 5 -.
Remove bolts - 3 - (3x) and carefully pull insulation box out off glove compartment - 2 -.

NOTE:

Install cold air hose - 1 - and screw to vent - 5 -.

5 - Vent

Tighten as far as possible
