Glove compartment, assembly overview: Notes

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

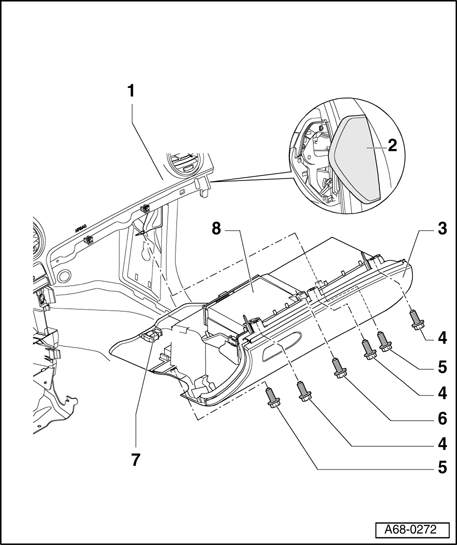

Fig 1: Glove Compartment, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Instrument panel

2 - Instrument panel cover, right

Removing Removing right instrument panel cover

3 - Glove compartment

Removing

Remove instrument panel cover - 2 -.
Open glove compartment lid.
Remove three bolts - 4 - in recesses at top of glove compartment - 3 -.
Remove bolts - 5 - (2x) from underneath (footwell).

For vehicles with CD changer - 8 - : Remove bolt - 6 -.
Vehicles with insulation box: Remove vent.
Pull out glove compartment downward.
Disconnect connector - 7 - from glove compartment light.

Disconnect connectors to electrical components in glove compartment (if applicable).

4 - Bolts (3x)

Tightening torque 3.5 Nm

5 - Bolts (2x)

Tightening torque 3.5 Nm

6 - Bolt

Tightening torque 3.5 Nm
Vehicles with CD changer only

7 - Connector

8 - CD changer
