Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE PROTECTOR
1. Disengage the 2 guides as shown in the illustration.

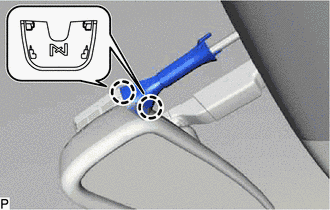

  Fig 1: Protector Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 claws and remove the protector.

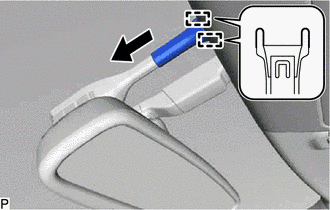

  Fig 2: Claws & Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HUMIDITY SENSOR (AIR CONDITIONING THERMISTOR ASSEMBLY)
1. Disconnect the connector.

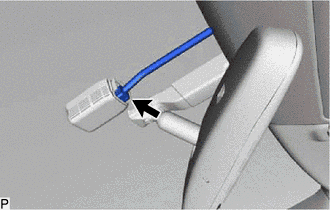

  Fig 3: Identifying Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Release the stopper by pulling it down.

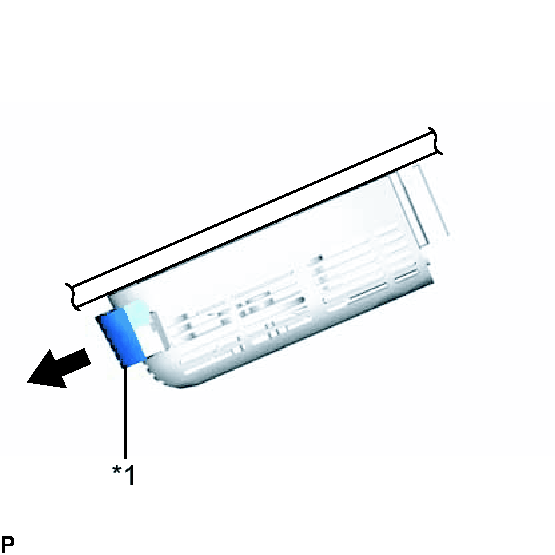

  Fig 4: Release Stopper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Stopper
3. Disengage the 4 guides and remove the humidity sensor (air conditioning thermistor assembly) as shown in the illustration.

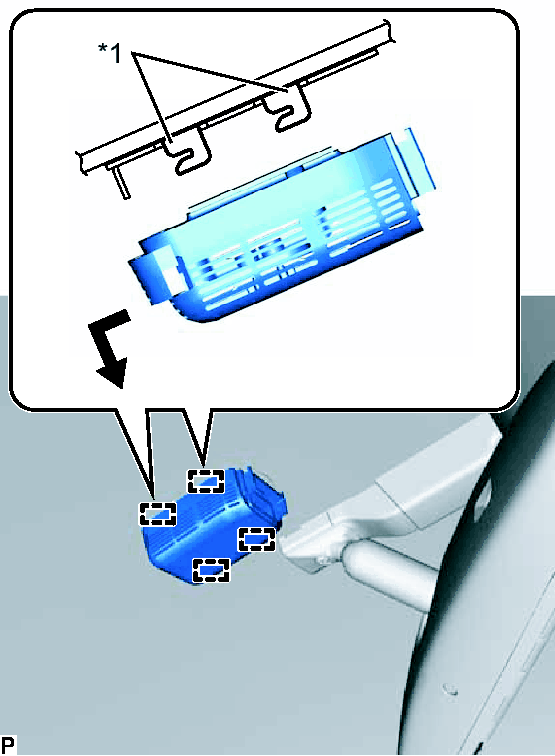

  Fig 5: Identifying Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Bracket
