B-pillar trim panel, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

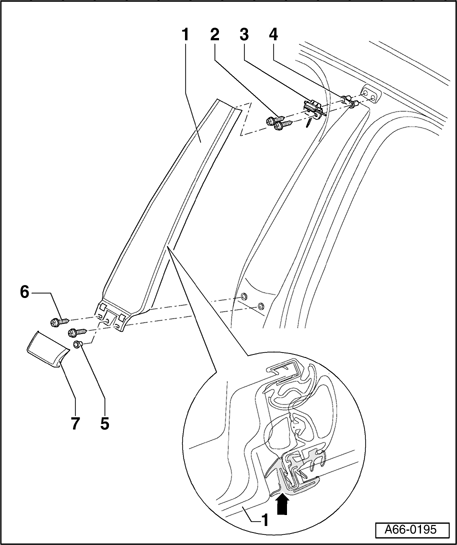

1 - B pillar trim panel
Removing:
- Unclip cover - 7 -.
- Remove bolts - 6 - pull trim panel off outward.
Installation:
- With rear door opened, guide trim panel into retaining bracket.
- With rear door closed, position at top and bottom according to magnified area in illustration.
- Screw in front bolt - 6 -.
- Outer lip of rear door window seal must make contact cleanly over entire range of trim panel.
NOTE:
- Excessive pressure on seal at trim panel must be prevented, otherwise the projecting lip may cause wind noise.
- With door opened, screw in rear bolt - 6 -.
- Press grommet - 5 - into trim panel.
- Slide cover - 7 - on from below.
2 - Bolt
- 1.5 Nm
3 - Retaining bracket
4 - Clip
5 - Grommet
6 - Combination bolt
- 5 Nm
7 - Cover
