Side window (Avant), removing and installing - assembly overview

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

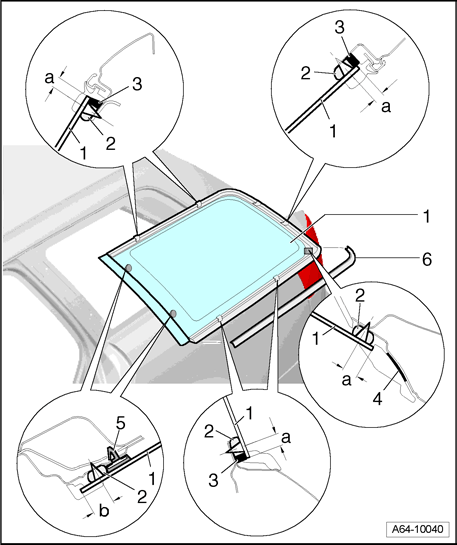

Fig 1: Side Window (Avant), Removing And Installing - Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Side window

2 - Adhesive bead

Note varying spacing dimensions to window edge.
Dimension - a - = 8 mm behind window molding
Dimension - b - = 25 mm
Bead cross section

Bead width = 8 mm ± 2 mm
Bead height = 13.5 ± 1.5 mm

3 - Spacers

Height 8 mm

4 - Double sided adhesive

D 004 400

5 - Securing pin

6 - Trim for side panel

When installing, first insert into roof trim molding at bottom, then press at sides into retaining clips on side panel.
