Side impact moldings, replacing: Notes
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

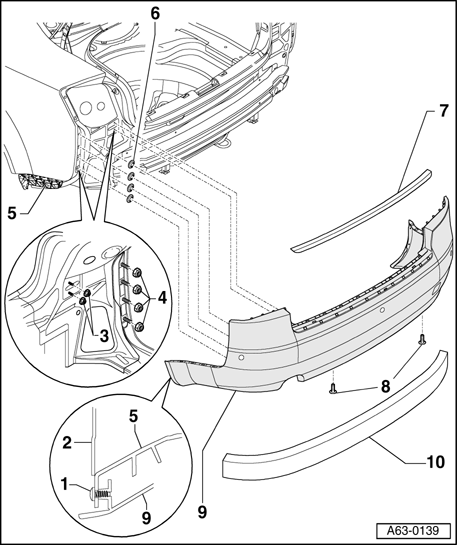

Assembly overview
1 - Bolt
- 1 Nm
2 - Wheelhousing liner
3 - Cap nut
- 4 Nm
4 - Cap nut
- 4 Nm
5 - Guide piece
6 - Grommet
- Must be pressed in before assembling cover - 9 -.
7 - Trim molding
8 - Bolt
- 2 Nm
9 - Cover
- Removal Bumper, removing and installing
10 - Side impact molding
- Replace
- Side impact moldings are secured to bumper with double-sided adhesive tape.
- It is not possible to remove without destroying.
- To remove, pull side impact molding away from bumper.
- Remove any residual adhesive on bumper.
- Installation on same bumper
- Bumper must be free of dust and grease in adhesion area
- Clean bumper using petroleum spirits or cleaning solution D 009 401 04.
- Position centering pins with double-sided adhesive tape onto markings of side impact molding Adhering centering pins on side impact molding .
- Remove protective foil from double-sided adhesive tape for side impact molding.
- Press side impact molding with attached centering pins firmly onto bumper over the entire surface.
