Bumper, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
Up to Vehicle Identification Number (VIN) 400 000

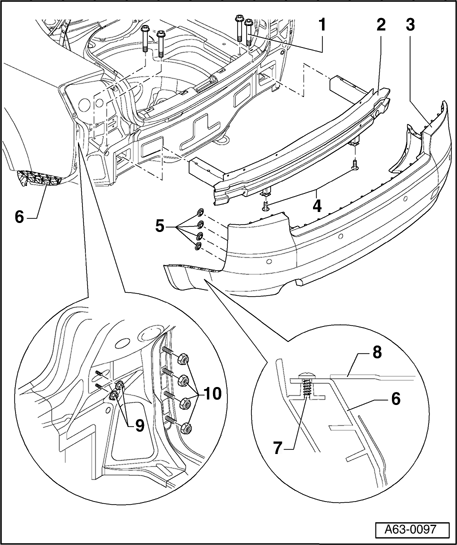

Fig 1: Rear Bumper (Sedan) Remove/Install Components (Up to Vehicle Identification Number (VIN) 400 000)
1 - Combination bolt
- 18 Nm
2 - Bumper
- Bumper cover removed.
Remove combination bolts - 1 - and pull out bumper toward rear.
3 - Cover
- Two-piece version
- One-piece version (for USA)
- Removing:
- Remove side luggage compartment trim. →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
- Disconnect electrical harness connectors to parking aid sensors at control module (under tail light, left side).
- Remove cap nuts - 9 - and - 10 -.
- Remove combination bolts - 4 -.
- Unscrew wheel housing liners - 8 - in rear area.
- Remove bolts left and right on guide piece - 6 -
- Unscrew bolts - 7 - from wheelhousing liner
- Unclip cover side-pieces on guide piece.
- Remove cover.
- Separating two-piece cover:
- Drill off rivet heads from pop rivets at left and right.
- Disengage locking tabs and pull spoiler out of cover.
4 - Combination bolts
- 4 Nm
5 - Grommet
- Grommets must be pressed in before assembling cover.
6 - Guide piece
- Removing and installing → Guide piece, removing and installing
7 - Sheet-metal screw
- 2 Nm
8 - Wheelhousing liner
9 - Cap nut
- 4 Nm
10 - Cap nuts
- 4 Nm
As of Vehicle Identification Number (VIN) 400 001

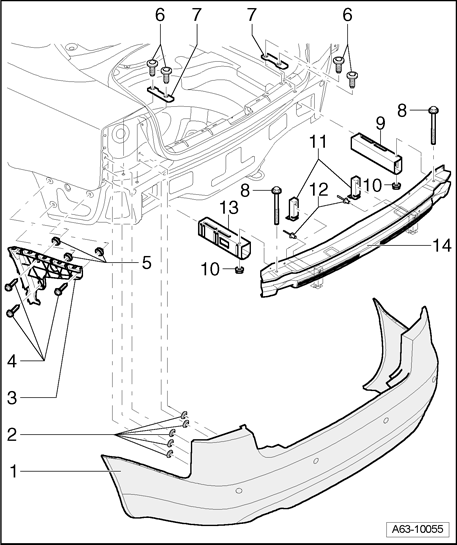

Fig 2: Rear Bumper (Sedan) Remove/Install Components (As Of Vehicle Identification Number (VIN) 400 001)
1 - Cover
- Removing:
- Remove side luggage compartment trim. →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
- Disconnect electrical harness connectors to parking aid sensors at control module (under tail light, left side).
- Remove special nuts - (accessible from luggage compartment).
- Remove special nuts - Cap nuts - (accessible from luggage compartment).
- Unscrew wheel housing liners in rear area.
- Remove bolts left and right on guide piece - 3 -
- Unclip cover side-pieces on guide piece.
- Remove cover.
- Separating two-piece cover:
- Drill off rivet heads from pop rivets at left and right.
- Disengage locking tabs and separate both pieces of cover.
2 - Grommet
- Grommets must be installed before assembling cover.
3 - Guide piece
4 - Combination bolts
- 1.5 Nm
5 - Expanding rivet
- Pressed into side panel at bottom
6 - Combination bolt
- 18 Nm
7 - Base plate
- Must always be installed.
8 - Combination bolt
- 18 Nm
9 - Right holder for bumper
- Bumper removed
- Remove combination bolt - 8 - and pull shock absorber out of bumper.
10 - Hex nut
- 18 Nm
- Counterhold when tightening combination bolt - 8 -.
11 - Bracket
- Riveted to bumper.
12 - Pop rivet
13 - Left holder for bumper
- Bumper removed
- Remove combination bolt - 8 - and pull shock absorber out of bumper.
14 - Bumper
- Cover - 1 - removed.
- Remove combination bolts - 6 - and pull bumper toward rear out of longmembers.

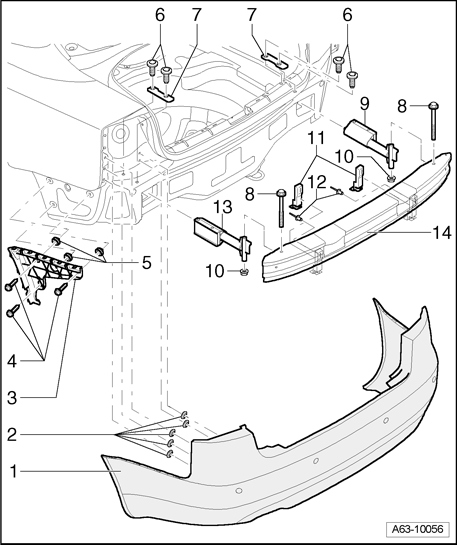

Country version
1 - Cover
- Removing:
- Remove side luggage compartment trim. →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
- Disconnect electrical harness connectors to parking aid sensors at control module (under tail light, left side).
- Remove special nuts - (accessible from luggage compartment).
- Remove special nuts - Cap nuts - (accessible from luggage compartment).
- Unscrew wheel housing liners in rear area.
- Remove bolts left and right on guide piece - 3 -
- Unclip cover side-pieces on guide piece.
- Remove cover.
- Separating two-piece cover:
- Drill off rivet heads from pop rivets at left and right.
- Disengage locking tabs and separate both pieces of cover.
2 - Special nut
- 4 Nm
3 - Guide piece
4 - Combination bolts
- 1.5 Nm
5 - Expanding rivet
- Pressed into side panel at bottom
6 - Combination bolt
- 18 Nm
7 - Base plate
- Must always be installed.
8 - Combination bolt
- 30 Nm
9 - Right shock absorber
- Bumper removed
- Remove combination bolt - 8 - and pull shock absorber out of bumper.
10 - Hex nut
- 30 Nm
- Counterhold when tightening combination bolt - 8 -.
11 - Bracket
- Riveted to bumper.
12 - Pop rivet
13 - Left shock absorber
- Remove combination bolt - 8 - and pull shock absorber out of bumper.
14 - Bumper
- Cover - 1 - removed.
- Remove combination bolts - 6 - and pull bumper toward rear out of longmembers.
