Centering holes for side impact moldings: Notes

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Up to Vehicle Identification Number (VIN) 400 000

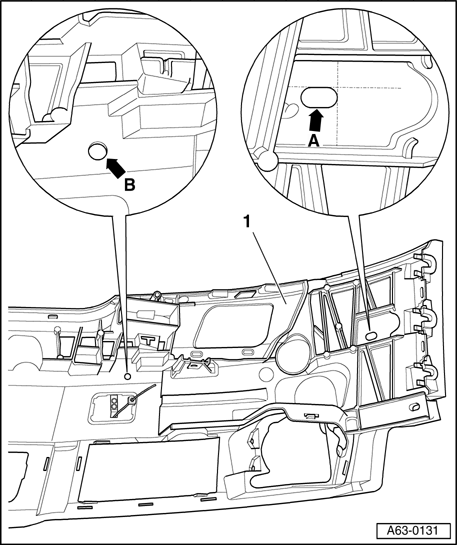

Fig 1: Centering Holes For Side Impact Moldings

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front bumper

Position hole to vehicle outside - arrow B - according to marking on bumper.

NOTE:

If there is no marking in this position, the long hole (as depicted in illustration) must be manufactured at upper/outer edge, according to the lines on bumper Positioning centering holes .
Position hole to vehicle center - arrow A - according to marking on bumper.
