Sunroof panel, removing and installing (assembly overview)
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

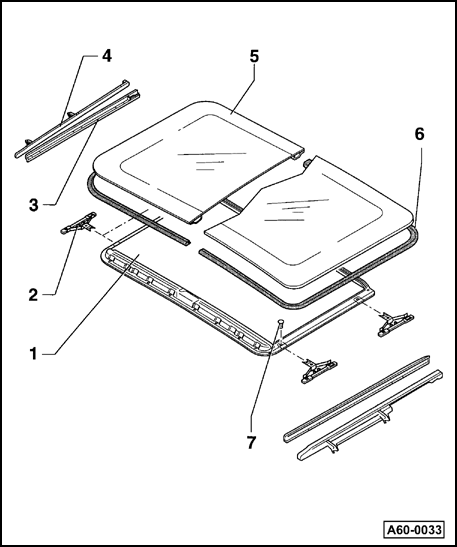

1 - Sliding headliner
- Only for vehicles with glass panel
- For vehicles with solar panel, slide into sunroof toward rear
- Detach headliner before removing
- Removal → Sunroof headliner, removing and installing .
2 - Spring for sliding headliner
- Detach cover frame for molded headliner before removal. →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
- To remove, remove countersunk screw - 7 - at front and rear.
- Push front spring - 2 - forward and rear spring rearward, remove both from sliding headliner.
- Pull sliding headliner on opposite guide track out of side and lift out.
3 - Lower trim
- Removal → Trim, removing and installing .
4 - Upper trim
- Removal → Trim, removing and installing .
NOTE:
- For vehicles as of calendar week 27/2002, a boot is installed in place of upper/lower panel.
- Removal and installation is described on → Boot, removing and installing (vehicles as of CW 27/2002 >) .
5 - Sunroof panel
- To remove, detach headliner
- Remove left and right panels → Trim, removing and installing .
- Remove Torx bolts (T 25) left and right at sunroof panel and lift out panel → Sunroof panel, removing .
- Adjusting → Sunroof panel, adjusting .
6 - Panel seal
- Removal → Panel seal, replacing .
7 - Countersunk screw
- 1.5Nm.
