Rear lid, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Removing

Remove rear lid trim. →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
Disconnect or remove electrical harness connectors and hose for rear window washer system.
Prop up and secure rear lid in open position.

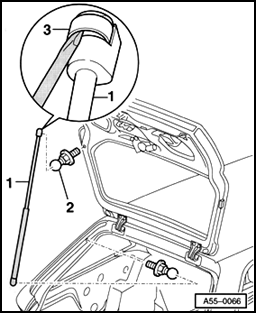

Fig 1: Using Screwdriver To Lift Retaining Spring And Remove Gas-Filled Strut From Upper Ball Stud

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Using screwdriver, lift retaining spring - 3 - as shown and remove gas-filled strut - 1 - from upper ball stud - 2 -.

Fig 2: Removing Cover For Rear Lid Hinge And Cable Guide From Rear Lid Hinge

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove cover - 1 - for rear lid hinge and cable guide - 2 - from rear lid hinge - arrows -.

Fig 3: Removing Rear Lid Bolts At Left/Right

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - arrows - at left and right.
Second technician is needed to support and lift hood during removal.
Remove rear lid.

Installing

Installation is the reverse of removal, noting the following:

When installing, tightening torque 21 Nm.
Adjusting rear lid → Rear lid, adjusting .
