Fuel filler flap

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Assembly overview

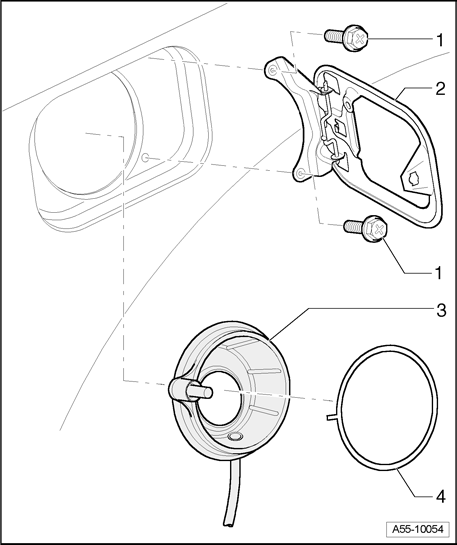

Fig 1: Fuel Filler Flap Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Sheet-metal screw

1.5 Nm

2 - Fuel filler flap

Panel gap dimensions Gap dimensions for fuel filler flap

3 - Fuel filler flap cup

Coat with soap solution to assist assembly.

4 - Ring for fuel filler flap cup
