Hood seal, assembly overview
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

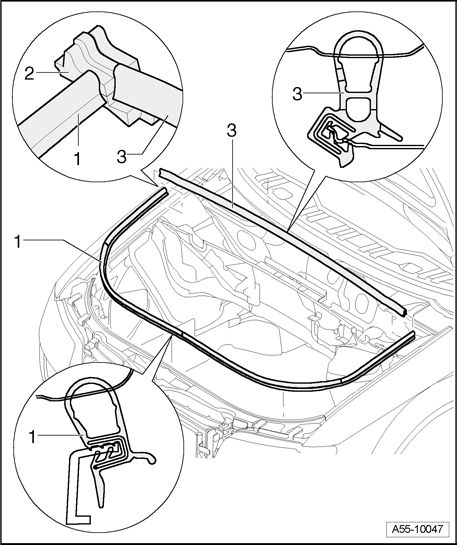

Assembly overview
1 - Seal for lock carrier
- Apply gasket at left and right on foam piece.
- When doing this, make sure it is applied without gaps.
- Compress excess length of gasket along lock carrier.
2 - Left sealing profile
- Self-adhering, adhesion surfaces must be free of dust and grease.
3 - Seal for plenum chamber
- Apply gasket at left and right on foam piece.
- When doing this, make sure it is applied without gaps.
- Compress excess length of gasket along front panel of plenum chamber.
