Hood lock cable, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

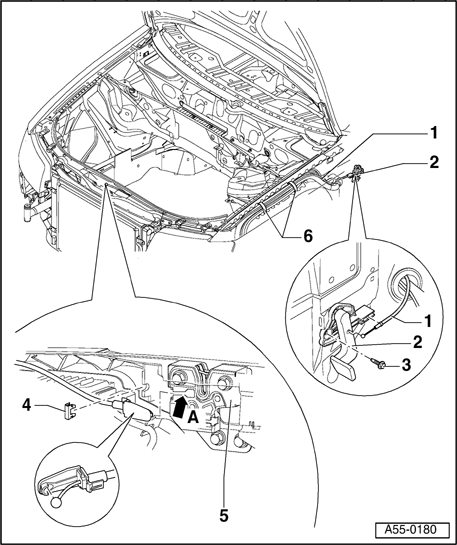

1 - Hood lock cable
- Removing:
- Raise vehicle.
- Remove front wheelhousing liner → Wheelhousing liner, removing and installing .
- Remove drivers side storage compartment →
- 68 - INTERIOR EQUIPMENT
- 68 - INTERIOR EQUIPMENT for BODY INTERIOR - CABRIOLET
- Remove retaining clamp - 4 -.
- Unclip cable for lower part of hood lock and disengage attachment lug arrow - A -.
- Installing:
- Install in reverse order of removal.
- Bring ball on cable for lower part of hood lock into installation position.
2 - Actuating lever
3 - Bolt
- 2.4 Nm
4 - Retaining clip
5 - Lower part of hood lock
- Removing and installing Removing and installing lower part of hood lock
- Can be used to adjust height of hood.
6 - Retaining clip
