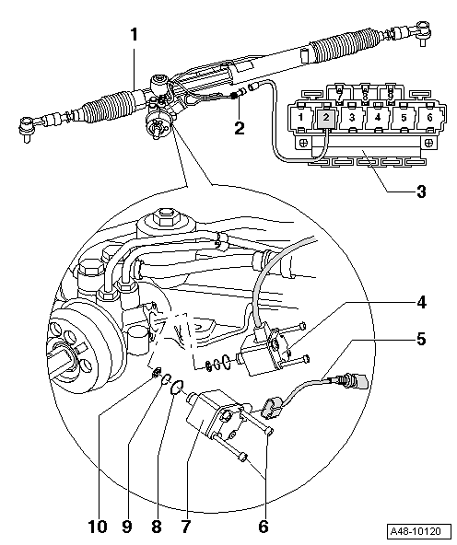

Servotronic steering gear, assembly overview
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Power assist steering gear with tie rods
- Assembly overview: → Power-assist steering gear, assembly overview
2 - Servotronic Solenoid Valve N119 connector
- Location: in left front wheel housing
3 - Relay carrier, 9-pin
- Located under trim in driver footwell → Electrical Wiring Diagrams, Troubleshooting and Component Locations
- Servotronic Control Module J236 item 2
- Check voltage supply → Servotronic voltage supply, checking
- Check speed signal → Speed signal, checking
4 - Servotronic Solenoid Valve N119 with fused connector cable
- Steering gear must be removed to exchange Servotronic Solenoid Valve
- Checking → Servotronic Solenoid Valve , checking
Do not open Torx screws!
5 - Adapter cable
6 - Hex socket head screw, 3 Nm
- SW 2.5 mm
Do not open Torx screws!
7 - Servotronic Solenoid Valve N119 with connector
- Steering gear must be removed to exchange Servotronic Solenoid Valve
- Checking → Servotronic Solenoid Valve , checking
Do not open Torx screws!
8 - Sealing ring
- Always replace
9 - Sealing ring
- Always replace
10 - Strainer
- Always replace
