Intake hose to power steering pump location
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

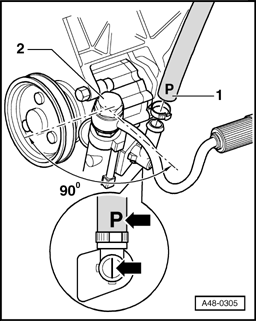

Illustration shows power steering pump and pressure line - 2 - as well as intake hose - 1 - on a 6-cylinder TDI engine. Location of pressure line and intake hose may differ from illustration on other engines.
- Marking - P - on intake hose - 1 - must align with formed seam on pump.
