Central valve and connections to suspension struts: Notes

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

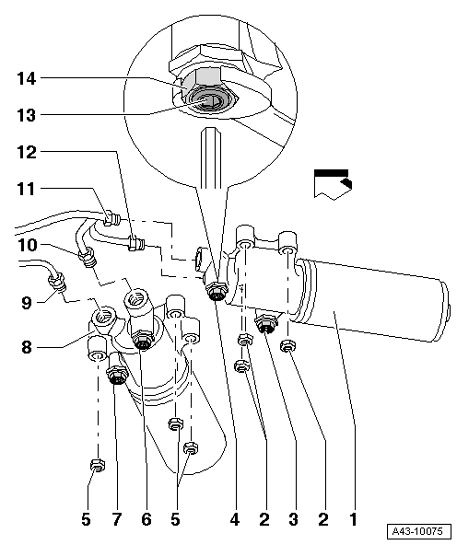

Fig 1: Central Valve And Connections To Suspension Struts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Right front and left rear central valve

Central valve is installed in direction of travel at left

2 - Nut, 23 Nm

3 - Rear wiring harness shut-off valve

4 - Front right wiring harness shut-off valve

5 - Nut 23 Nm

6 - Front left wiring harness shut-off valve

7 - Left rear right wiring harness shut-off valve

8 - Left front and right rear central valve

Central valve is installed in direction of travel at right

9 - DRC line to right rear strut

10 - DRC line to left front suspension strut

11 - DRC line to right front suspension strut

12 - DRC line to left rear strut

13 - Shut-off screw

To shut off, turn clockwise to stop
To open, turn counter-clockwise to stop

14 - Lock nut, 12 Nm
