Driveshaft with constant velocity inner joint (diameter 108 mm), servicing: Notes
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools, testers and auxiliary items required
- Thrust plate VW 401
- Thrust plate VW 402
- Punch VW 409
- Punch VW 412
- Support sleeve VW 522
- Clamp 40-204 A
- Assembly tool T10065/4
Constant velocity joints are packed with grease G 000 603:
Grease quantity and type
| Grease quantity | Amount in: | ||
|---|---|---|---|
| Outer joint | Total quantity | Joint | Boot |
| [mm] | [g] | [g] | [g] |
| 88 | 90 | 40 | 50 |
| Inner joint | Apply grease through ball paths | ||
| 108 | 120 | ||
Grease joint again when replacing protective joint boot.

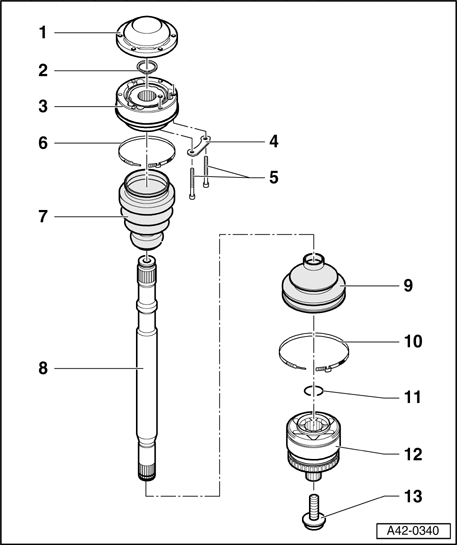

1 - Cover
- Carefully drive off using a drift Drive off cover for inner joint
- Always replace
- Coat sealing surface with D 454 300 A2 before installing on constant velocity joint → Figure
- Align cover to screw holes
2 - Circlip
- Remove and install with commercially-available circlip pliers
- Always replace
3 - Inner CV joint with protective boot cap
- Exterior diameter: 108 mm
- Replace only as a unit
- Pressing off Pressing off inner constant velocity joint
- Pressing on Pressing on inner constant velocity joint
- Greasing Grease quantity and type
- Adhesive surface must be free of oil and grease
- When installing joint on profile shaft, profile shaft splines must be lightly coated with grease used in joint.
4 - Backing plate
5 - Multi-point socket head bolt
- Torque specifications:
Screw M 8: 40 Nm
Screw M10: 65 Nm
6 - Clamp
- Always replace
- Tensioning Tighten clamp
7 - Protective boot for inner constant velocity joint
- With vent hole
- Check for tears and chafing; replace if necessary
- In case of damage, check inner constant velocity joint → Inner constant velocity (CV) joint, checking
- Protective boot/drive axle/cap sealing surfaces must be free of grease at installation
8 - Axle shaft
9 - Outer constant velocity protective joint boot
- Exterior diameter: 88 mm
- Without ventilation bore
- Check for tears and chafing; replace if necessary
- In case of damage, check outer constant velocity joint → Outer constant velocity (CV) joint, checking
- Protective boot/drive axle/joint sealing surfaces must be free of grease at installation
10 - Clamp
- Always replace
- Tensioning Tighten clamp
11 - Circlip
- Always replace
- Insert in shaft groove
12 - Outer constant velocity joint
- Replace only as a unit
- Driving off → Pressing off outer constant velocity joint
- Installing: Drive onto shaft using plastic hammer until compressed circlip seats.
- Circlip must lie in joint chamfer when guiding in, guide with pliers if necessary.
- Greasing Grease quantity and type
- When installing joint on profile shaft, profile shaft splines must be lightly coated with grease used in joint.
13 - Collar bolt
- Always replace
