Coil spring, removing and installing

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Spring Compressor Kit V.A.G 1752

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Spring compressor V.A.G 1752/1
Adapter V.A.G 1752/9
Spring holder A4, rear axle V.A.G 1752/16

Removing

Remove wheel.

Fig 2: Identifying Spring Compressor V.A.G 1752/1 With Adapter V.A.G 1752/9 And Spring Holder A4, Rear Axle V.A.G 1752/16 In Coil Spring

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert spring compressor V.A.G 1752/1 with adapter V.A.G 1752/9 and spring holder A4, rear axle V.A.G 1752/16 in coil spring; if necessary, guide spring holder individually into windings and then fasten to spring compressor. When doing so, do not damage trapezoidal control arm.

It must be compressed 4 turns.

If this is not possible, compress only 3 turns and turn coil spring until 4 turns prescribed can be compressed.

CAUTION: Ensure correct seating of coil spring in spring holder A4, rear axle V.A.G 1752/16 (risk of accident).

Compress spring compressor to stop and remove spring.

Installing

NOTE:

When installing new spring, ensure conical end points downward.

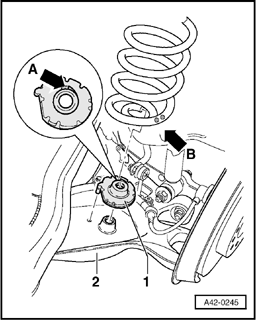

Fig 3: Identifying Trapezoidal Control Arm Hole, Spring Seat, Colored Markings & Spring Seat Stop

Courtesy of VOLKSWAGEN UNITED STATES, INC.

- Arrow B - : Colored markings must be at bottom.

Lower spring seat - 1 - has a pin.
Insert this pin in trapezoidal control arm hole - 2 -.
Turn ends of coil spring so that it rests on spring seat stop - arrow A -.
Insert upper spring seat (not in illustration) in upper spring end.

Tension spring. Align upper spring seat in body hole.
Mount wheel and tighten. This information is contained in AESIS; Library; Additional Information; Wheels and Tire Guide
