Part VI, Stabilizer bar

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

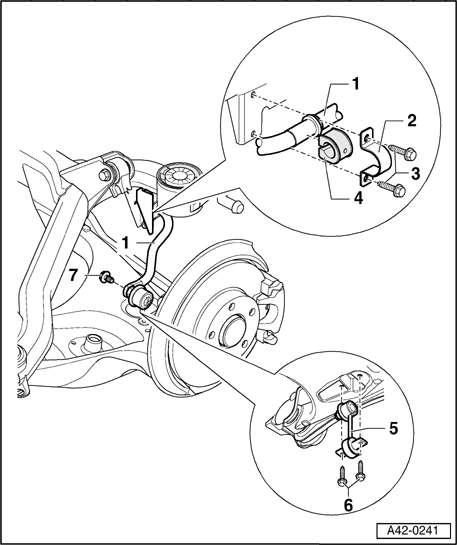

Fig 1: Rear Axle Part VI, Stabilizer Bar

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Stabilizer bar

Be aware of the various suspension versions, Clarification of Production Control numbers (PR No.) Vehicle data plate.
Removing and installing → Stabilizer bar, removing and installing
Replace bearing → Stabilizer bushings, replacing
Always replace mounts on both sides of vehicle

2 - Clamp

3 - Collar bolt, 25 Nm

4 - Bushing

Replacing → Stabilizer bushings, replacing
Always replace mounts on both sides of vehicle

5 - Coupling rod

Connects stabilizer with trapezoidal control arm

6 - Collar bolt, 25 Nm

7 - Collar bolt, 45 Nm
