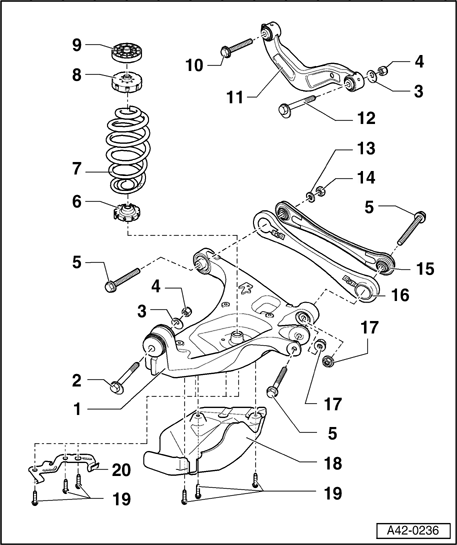

Part III, Trapezoidal control arm, transverse link, tie rod
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Trapezoidal control arm
- Various versions → Trapezoidal control arm
- Mixed installation not permissible
- Removing and installing → Trapezoidal control arm
- Trapezoidal control arm bushings must not be replaced, if bushing is damaged, replace trapezoidal control arm
2 - Eccentric bolt
- Vehicle alignment must be performed after loosening. → Wheel alignment
- Do not turn more than 90° left or right (that is, smallest to largest possible adjustment)
3 - Eccentric washer
- Inner bore with tab
4 - Hex nut, self-locking, 95 Nm
- Always replace
- Tighten bolts only in curb weight position
5 - Combi-bolt
- Always replace
- Tighten to 85 Nm plus an additional 90° turn
6 - Lower spring support
- End of spring turned to stop
7 - Coil spring
- Note different vehicle versions, see vehicle data plate. Clarification of Production Control numbers (PR No.)
- Removing and installing → Rear coil spring
8 - Upper spring support
9 - Upper spring support
10 - Combi-bolt
- Always replace
- Tighten to 85 Nm plus an additional 90° turn
11 - Transverse link
- Removing and installing → Transverse link
- Replace bearing → Transverse link bracket, replacing
12 - Eccentric bolt
- Vehicle alignment must be performed after loosening. → Wheel alignment
- Do not turn more than 90° left or right (that is, smallest to largest possible adjustment)
13 - Washer
14 - Nut, self-locking
- Always replace
- Tighten to 85 Nm plus an additional 90° turn
- Tighten bolts only in curb weight position
15 - Tie rod
- Various versions
- Removing and installing → Tie rod
- Vehicle alignment must be performed after installing. → Wheel alignment
16 - Stone protection plate
- Various versions
- Only for heavy duty suspension
- Removing and installing (old version 8E0 501 561) → Tie rod (three-piece version) stone protection 8E0 501 561 (old version), removing and installing
- Removing and installing (new version) → Tie rod and → Tie rod (one-piece version) stone protection (new version), removing and installing
17 - Collar nut, self-locking
- Always replace
- Tighten bolts only in curb weight position
18 - Trapezoidal control arm stone protection
- Only for heavy duty suspension
19 - Collar bolt, 25 Nm
20 - Bracket
- For parking cable
