Part I, Subframe - front wheel drive
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

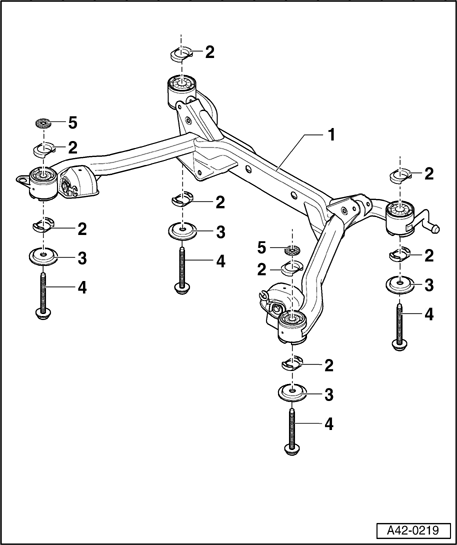

1 - Subframe
- Removing and installing → Subframe, removing and installing
- Subframe bushings, replacing → Subframe bushings, replacing
2 - Plastic insert
- Part of purchased bushing assembly
3 - Washer
- Always replace
4 - Combi-bolt
- Always replace
- Tighten to 110 Nm plus an additional 90° turn
- Threads in body can be repaired according to DIN 8140 using wire thread inserts (Heli-Coil). Thread insert must be same length as thread in body.
5 - Washer
- Front only
- Corrugation face toward body
- Only installed with hydraulic mounting 8E0 505 145 AQ
- Discontinued from KW 48/00 with introduction of new hydraulic bushing
