Coil spring, installing

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Strut, Replacing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install suspension strut, lower spring support and protective cap.
Position pre-tensioned coil spring on lower spring support using spring holder V.A.G 1752/4. End of spring coil must rest against stop - arrow -.

Permissible deviation: ± 2°.

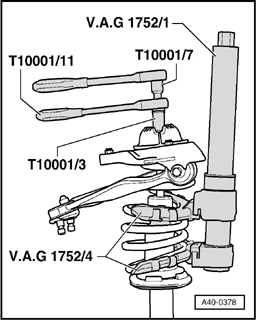

Fig 1: Coil Spring, Removing/Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Position individual suspension strut components. Ensure end of spring rests against upper spring support stop.
Tighten collar nut with special tools ,
Do not release spring tension yet
