Component, overview
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Filling outer joint with grease G 000 603.
Filling triple roller joint with grease G 000 605.
Grease quantity and type
| Grease quantity | Amount if: | ||
|---|---|---|---|
| Outer joint | Total quantity | Joint | Boot |
| [mm] | [g] | [g] | [g] |
| 88 | 90 | 50 | 40 |
| Inner joint | |||
| 72 | 110 | 80 | 30 |
Grease joint again when replacing protective joint boot.

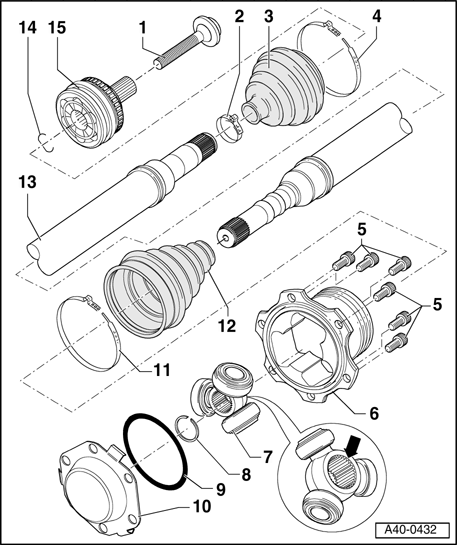

1 - Bolt
- Always replace if removed
- Loosen Remove drive axle
- Fastening Install drive axle
- Torque specification Install drive axle .
2 - Clamp
- Replace
3 - Constant velocity (CV) joint boot
- Check for tears and chafing
- Before clamping hose clamp, raise protective joint boot briefly to balance pressure.
4 - Clamp
- Replace
5 - Multi-point socket head bolt
6 - Triple roller joint housing
7 - Triple rotor star with rollers
- Chamfer - arrow - faces splines drive axle splines
- When installing triple roller star on profile shaft, profile shaft splines must be lightly coated with grease used in joint.
8 - Circlip
- Replace
9 - O-ring
- Replace
10 - Cover
- Replace
11 - Clamp
- For triple roller joint
- Replace
12 - CV boot for triple roller joint
- Check for tears and chafing
- Before clamping hose clamp, raise protective joint boot briefly to balance pressure. Joint must be in center position.
13 - Axle shaft
14 - Circlip
- Replace
- Insert in shaft groove
15 - Outer constant velocity joint
- Replace only as a unit
- Installing: Drive onto shaft using plastic hammer until compressed circlip seats.
- Greasing Grease quantity and type
- Checking → Outer constant velocity (CV) joint, checking
- When installing joint on profile shaft, profile shaft splines must be lightly coated with grease used in joint.
