Drive axle with constant velocity inner joint (diameter 108 mm), servicing: Tools
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

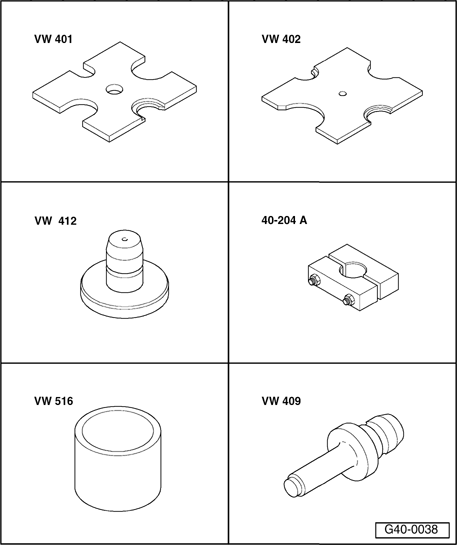

Fig 1: Identifying Special Tools - Drive Axle With Constant Velocity Inner Joint (Diameter 108 mm), Servicing
Special tools, testers and auxiliary items required
- Thrust plate VW 401
- Thrust plate VW 402
- Punch VW 412
- Clamp 40 - 204 A
- Support sleeve VW 516
- Punch VW 409
