Drive axle with constant velocity inner joint (diameter 100 mm), servicing: Tools

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

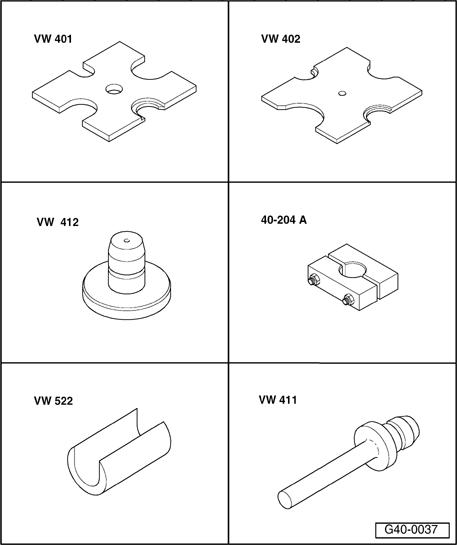

Fig 1: Identifying Special Tools - Drive Axle With Constant Velocity Inner Joint (Diameter 100 mm), Servicing
GW00019863Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Fig 2: Identifying Thrust Piece VW 434
GW00012816Courtesy of VOLKSWAGEN UNITED STATES, INC.
Fig 3: Pressing Appliance VW 459
GW00019864Courtesy of VOLKSWAGEN UNITED STATES, INC.
