Individual component overview
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Constant velocity joints are packed with grease G 000 603:
Grease quantity and type
| Grease quantity | Amount in: | ||
|---|---|---|---|
| Outer joint | Total quantity | Joint | Boot |
| [mm] | [g] | [g] | [g] |
| 88 | 90 | 50 | 40 |
| Inner joint | Apply grease through ball paths | ||
| 100 | 80 | 30 | 50 |
Grease joint again when replacing protective joint boot.

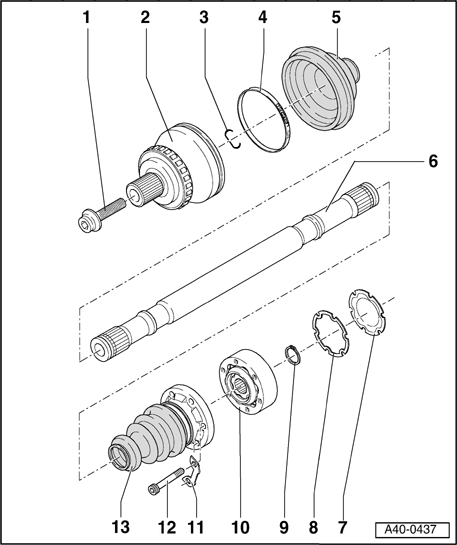

Fig 1: Drive Axle With Constant Velocity Inner Joint (Diameter 100 mm) Individual Component Overview
1 - Bolt
- Always replace if removed
- Loosen Remove drive axle
- Fastening Install drive axle
- Torque specification Install drive axle .
2 - Outer constant velocity joint
- Replace only as a unit
- Removing Outer CV joint, removing
- Installing Outer CV joint, installing
- Greasing Grease quantity and type
- Checking → Outer constant velocity (CV) joint, checking
- When installing joint on profile shaft, profile shaft splines must be lightly coated with grease used in joint.
3 - Circlip
- Always replace
- Insert before mounting in ring groove (not visible with joint installed)
4 - Clamp
- Replace
5 - Outer constant velocity protective joint boot
- Check for tears and chafing, replace if necessary
- In case of damage, check outer constant velocity joint → Outer constant velocity (CV) joint, checking
- Before clamping hose clamps, raise protective joint boot briefly to balance pressure.
- Sealing surfaces must be free of grease when installing.
6 - Axle shaft
7 - Cover
- Always replace
8 - Gasket
- Always replace
9 - Circlip
- Replace
- Insert in shaft groove
10 - Inner constant velocity joint
- Exterior diameter: 100 mm
- Replace only as a unit
- Removing Inner CV joint, removing
- Installing Inner CV joint, installing
- Greasing Grease quantity and type
- Adhesive surface must be free of oil and grease
- Checking → Inner constant velocity (CV) joint, checking
- When installing joint on profile shaft, profile shaft splines must be lightly coated with grease used in joint.
11 - Backing plate
12 - Multi-point socket head bolt
13 - Protective boot with cap
- In case of damage, check inner constant velocity joint → Inner constant velocity (CV) joint, checking
- Check for tears and chafing
- Replace only as a unit
- Removing Inner CV joint, removing
- Installing Inner CV joint, installing
- Protective boot-drive axle sealing surfaces and cap must be free of grease when installing
