Brake calipers, servicing
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

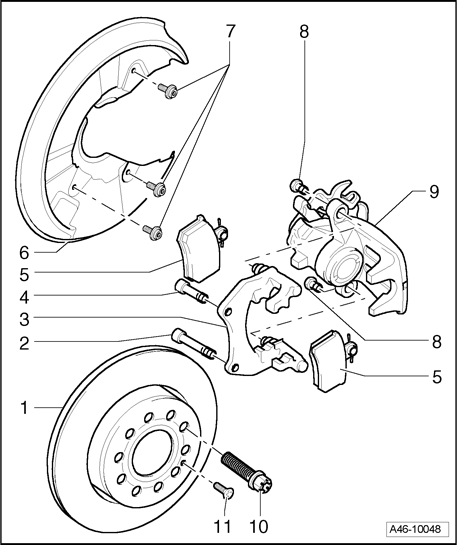

Rear brakes with automatic adjustment
NOTE:
- Install all parts supplied in repair kit.
1 - Brake disc
- Always replace both sides
- Remove brake caliper prior to removing
- Tighten evenly, on both sides, starting from thickness when new
- Allocation → Brakes
- Thickness → Brakes
2 - Ribbed bolt, 75 Nm
- M10x1.25 x 60
- Always replace
- Use socket T40027
3 - Brake carrier with guide pins and protective caps
- Replacement carriers are supplied assembled and with sufficient grease on guide pins
- If protective caps or guide pins are damaged, replace using repair kit. Use grease packet supplied to lubricate guide pins.
4 - Ribbed bolt, 75 Nm
- Always replace
- M10x1.25 x 50
5 - Brake pads
- Always replace both sides
- Removing and installing → Brake pads, removing and installing
- Checking pad thickness:
- Different versions ETKA
6 - Brake disc cover
7 - Collar bolt, 10 Nm
- M6x12
8 - Self-locking bolt, 35 Nm
- Always replace
- When loosening and tightening, counter-hold on guide pin
9 - Brake caliper housing
- Do not disconnect brake hose when changing brake pads
- Servicing brake calipers
10 - Wheel bolts
- Installing wheels → 44 - WHEELS, TIRES, VEHICLE ALIGNMENT
11 - Torx bolt
- Tightening torque: 5 Nm
