Right flange shaft seal and grooved ball bearing, replacing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2009 Audi A4, 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Special Tools - Right Flange Shaft Seal And Grooved Ball Bearing, Replacing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Pressure plate VW 401
Pressure plate VW 402
Punch VW 407
Punch VW 412

Extractor lever VW 681
Driving sleeve 32 - 109

Special tools, testers and auxiliary items required

Fig 2: Tube 2040

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Tube 2040

Fig 3: Fitting Drift 2062

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Driver 2062

Fig 4: Removing/Installing Circlip And Seal At Grooved Ball Bearing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Work procedure

Remove right flange shaft → 39 - FINAL DRIVE, DIFFERENTIAL .

Removing shaft seal

Remove securing ring - arrow A - for grooved ball bearing.

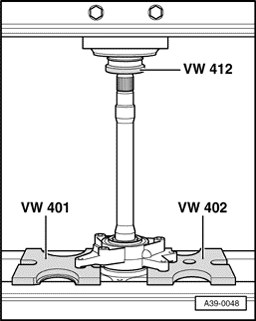

Fig 5: Pressing Flange Shaft Out Of Flange Shaft Bearing Bracket

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Press flange shaft out of mounting bracket for flange shaft as shown in the illustration.
Pull flange shaft seal out of mounting bracket using Extractor lever VW 681.

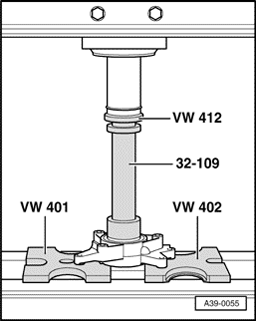

Fig 6: Pressing Grooved Ball Bearing Out Of Bearing Bracket

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing grooved ball bearing

Press grooved ball bearing out of mounting bracket.

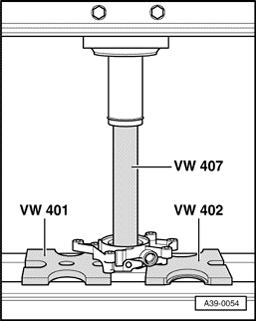

Fig 7: Pressing New Grooved Ball Bearing Into Bearing Bracket

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installing grooved ball bearing

Press new grooved ball bearing into mounting bracket.

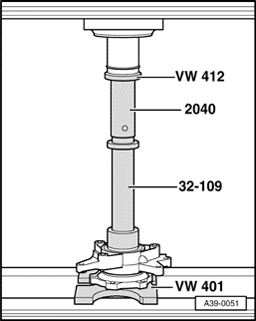

Fig 8: Pressing New Grooved Ball Bearing Into Mounting Bracket

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installing shaft seal

Coat outer edge and sealing lip of shaft seal with axle oil.

Installation position: Open side of shaft seal faces transmission.

Drive in new right flange shaft seal uniformly with Driver 2062.

Production drive-in depth 5.5 mm below mounting bracket surface.
If re-using the used flange shaft, repair drive-in depth is 6.5 mm.

NOTE:

Do not angle shaft seal when driving in.

Fig 9: Pressing Bearing Bracket With Grooved Ball Bearing Onto Flange Shaft

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Press mounting bracket with grooved ball bearing onto flange shaft.

Fig 10: Removing/Installing Circlip And Seal At Grooved Ball Bearing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert securing ring - arrow A -.
Install right flange shaft → 39 - FINAL DRIVE, DIFFERENTIAL .
Check gear oil level in front final drive → 39 - FINAL DRIVE, DIFFERENTIAL .
