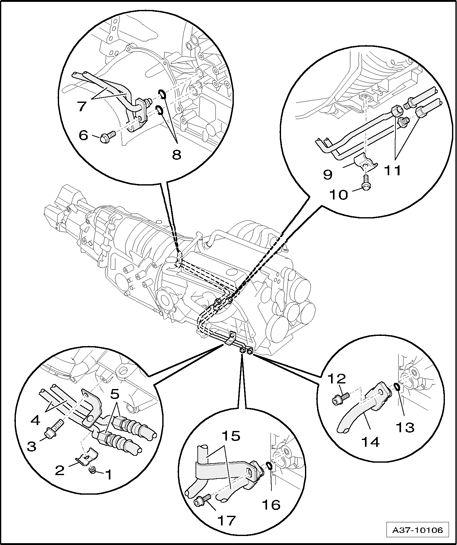

ATF cooling lines, component overview (vehicles with 2.0 ltr. TFSI engine)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2009 Audi A4, 2008 Audi S4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Nut, 8 Nm
2 - Clip
3 - Bolt, 42 Nm
4 - ATF lines
5 - Union nuts, 29 Nm
6 - Bolt, 21 Nm
- Before tightening bolt, push in ATF lines onto stop by hand
7 - ATF lines
- Before tightening bolt, push in ATF lines onto stop by hand
8 - O-rings
- Replace
- Lubricate with ATF when installing
9 - Clip
10 - Bolt, 5 Nm
- Secures ATF lines to transmission
11 - Union nuts, 29 Nm
12 - Bolt, 5 Nm
- Secures ATF line at ATF cooler (top)
- Before tightening bolt, push in ATF line onto stop by hand
13 - O-ring
- Replace
- Lubricate with ATF when installing
14 - ATF line
- Inserted into ATF cooler (top)
- Before tightening bolt, push in ATF line onto stop by hand
15 - ATF lines
- Inserted into ATF cooler (bottom)
- Before tightening bolt, push in ATF lines onto stop by hand
16 - O-ring
- Replace
- Lubricate with ATF when installing
17 - Bolt, 5 Nm
- Secures ATF lines to transmission
- Before tightening bolt, push in ATF lines onto stop by hand
