Tower "II" , assembling

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Tower "II", Assembling

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Replace rectangular rings - 3 - and O-ring - 2 - on input shaft at clutch "E" - 1 -.
Before inserting, thinly coat rectangular rings - 3 - and O-ring - 2 - with Vaseline. Use only Vaseline, other lubricating substances cause functional problems in the hydraulic transmission control.
Make sure that rectangular rings - 3 - are fully seated all around in the input shaft groove.

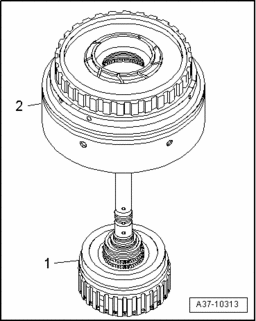

Fig 2: Identifying Clutch "A" and Clutch "E"

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Press clutch "A" - 2 - onto clutch "E" - 1 - until stop.

Fig 3: Identifying Circlip and Input Shaft

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install circlip - 2 - on input shaft - 1 -.

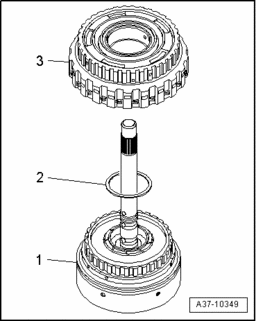

Fig 4: Identifying Clutch "B" and Clutch "A" Axial Needle Bearing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Place axial needle bearing - 2 - onto clutch "A" - 1 -.
Attach clutch "B" - 3 - onto disc carrier of clutch "A" , using short lifting/turning motions.

All clutch discs "B" must engage in sequence in plate carrier of clutch "A".

Check whether all plates are engaged, to do so lift clutch "B" a few millimeters and let fall.

If this produces a metallic sound, all plates are engaged.
If only a muted sound is heard, not all plates are engaged.

Fig 5: Identifying Tower "II", Clutch "B" and Adjustment Shim

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Place adjustment shim - 2 - onto clutch "B" - 1 -.
