Clutch "B" , disassembling and assembling

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Disassembling

Rotate clutch "B".

Fig 1: Identifying Circlip and Plate Pack

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove circlip - 1 - and remove disc pack - 2 - from cylinder "B".

Fig 2: Press Plate Spring Down Under Shop Press Using Installation Bracket T10289

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Press plate spring down under shop press using installation bracket T10289.
Remove split retaining ring - 1 -.

Fig 3: Cylinder "B" Component Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove dished washer - 5 -.
Release shop press.

CAUTION: Wear eye protection.

Fig 4: Carefully Press Piston "B" Out Of Cylinder "B" With Compressed Air

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Carefully press piston "B" out of cylinder "B" with compressed air, to do so plug free oil bore using finger.

Assembling

CAUTION: Before assembling, check components of clutch "B" for wear and damage → Clutch "B" .

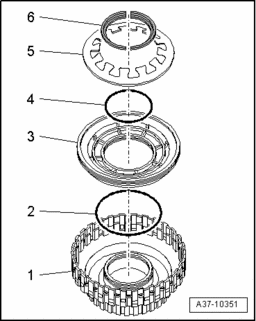

Fig 5: Cylinder "B" Component Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Replace O-rings - 2 - and - 4 - for piston "B" - 3 -.
Press piston "B" - 3 - into cylinder "B" - 1 - as far as stop.
Position plate spring - 5 -.

6 - Split retaining ring

Fig 6: Press Plate Spring Down Under Shop Press Using Installation Bracket T10289

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Press plate spring down under shop press using installation bracket T10289.
Install split retaining ring - 1 -.
Release shop press.

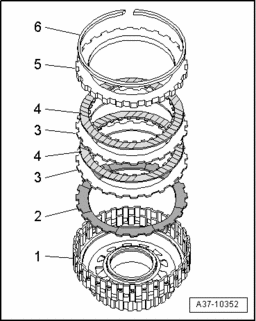

Fig 7: Cylinder "B", Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert waved washer - 2 - into cylinder "B" - 1 -.
Install outer plate - 3 - and coated plate - 4 - alternately.
Install thick outer plate - 5 -.

NOTE:

Ensure rounded edges of thick outer clutch disc faces toward lining disc - 4 - and not toward circlip - 6 -. This improves circlip contact surface.

Insert circlip - 6 -.

CAUTION: Illustration depicts current construction version of clutch "B" with waved washer - 2 - , 2x outer plates - 3 - and 2x coated plates - 4 -. Clutch "B" must be replaced on older versions without waved washer and with 3x lining and outer discs each.

Adjust clutch "B" air gap

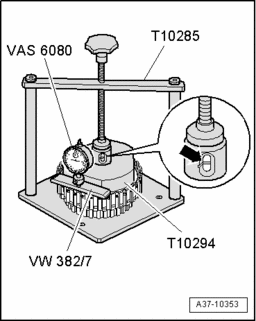

Fig 8: Place Clutch "B" On Pre-Tensioning Tool T10285

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Place clutch "B" on pre-tensioning tool T10285.
Place plate T10294 on outer clutch disc "B".

Plate must not touch circlip all around.

Insert pressure unit T10285/1 with centering pin into bore of plate.
Align clutch "B" on plate of pre-tensioning tool.

The pressure unit must be centrally positioned under spindle thrust piece.

Turn spindle of pre-tensioning tool downward.

The markings at the inspection hole of the pressure unit must align - arrow -.

Insert dial gauge VAS 6080 into measuring bar VW 382/7 and tighten knurled nut.
Apply measuring bar at upper edge of cylinder "B" , as depicted in illustration.
Check whether measuring bar makes proper contact at edge of cylinder "B".
Position measuring tip on outer plate and note measuring value.

Mark exact contact point on cylinder "B".
Repeat measurement at 2 other points of outer plate, 120° offset each, and mark contact points.
Average over 3 measured values under load.
Release spindle and remove plate.

Fig 9: Reach With Both Hands Into Clutch "B" and Pull Plate Pack Upward Until Stop

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Reach with both hands into clutch "B" and pull plate pack upward until stop.
When disc pack is pulled up, measure exact distance between upper edge of cylinder "B" and outer disc (2nd technician required) at one of the marked points.
Repeat measurement at 2 other marked points of outer plate.
Average over 3 measured values when plate pack is pulled up.

Determine air gap on the basis of the following calculations:

	Average of measured values under load (value 1 + value 2 + value 3): 3
	Measurement when plate pack is pulled up (value 1 + value 2 + value 3): 3
=	Air gap

Subtract average of measured values when plate pack is pulled up from average of measured values under load.

Clutch "B" air gap - Automatic Transmission 01V Front Wheel Drive

Transmission codes	Specified value
CJQ, CJU, CJV, CJW, CJX, CJY, CJZ, DCS, DDS, DDT, DEQ, DES, DEU, DPS, DRD, DRF, DSS, DUL, DUM, EFR, ETU, ETV, ETW, EZV, FAC	0.99 to 1.28 mm
EBU, EBV, EBW, EBX, EBY, EBZ, ECJ, EDC, EDE, EFP, EKC, EMA, ERY, ETK, ETL, ETZ, EYF, EZP, EZR, EZS, EZW, EZX, EZY, EZZ, FAB, FAD, FAE, FATF, FAH, FAJ, FAK, FED, FEE, FEV, FHV, FNL, FRT, GDE, GML	1.37 to 1.66 mm

Clutch "B" air gap - Automatic Transmission 01V All Wheel Drive

Transmission codes	Specified value
CJP, CJR, CJS, CJT, DEV, DEW, DEX, DEY, DKB, DPT, DRK, DRN, DST, DTU, DTV, EKX, ETX, ETY, FAN, FHD	0.99 to 1.28 mm
ECB, ECC, ECD, ECG, ECH, EDF, EFQ, EKD, EMM, EMP, ETM, ETN, EUA, EYJ, EYK, EZB, FAL, FAM, FAP, FAQ, FAR, FAS, FAU, FAV, FAW, FAX, FAZ, FBA, FBB, FEF, FEG, FEJ, FEP, FEQ, FHF, FHG, FHH, FLC, FLV, FNM, FRU, FVE, FXL, GAK, GBF, GBG, GBH, GBJ	1.37 to 1.66 mm

Fig 10: Identifying Circlip and Plate Pack

Courtesy of VOLKSWAGEN UNITED STATES, INC.

If specified value is not obtained:

Determine new circlip - 1 - according to the following table.

NOTE:

Disregard - 2 -.
Air gap too small: Install respectively thinner circlip.
Air gap too large: Install respectively thicker circlip.

Available circlips - thickness in mm

0.8	1.4	2.0
1.0	1.6
1.2	1.8

Check air gap of circlip again after inserting.
