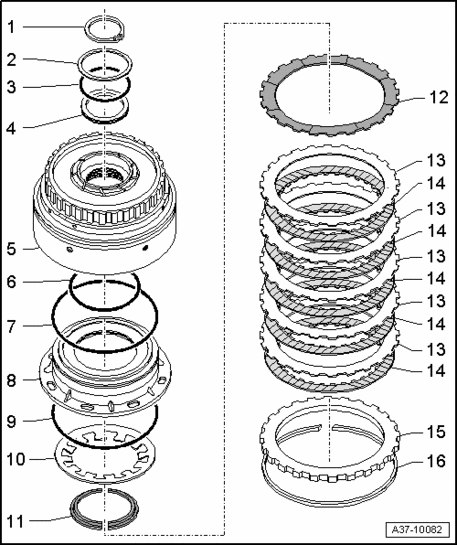

Clutch "A" , component overview
WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Some of the depicted components are part of component groups and are not available separately as replacement part .
- Before assembling, check clutch components "A" for wear and damage → Clutch "A" .
1 - Circlip
- Replace
- Do not over-stretch circlip when installing.
2 - Adjustment shim
- Determining thickness → Figure
3 - O-ring
- Replace
4 - Ring
5 - Cylinder "A"
6 - O-ring
- Replace
7 - Green O-ring
- Replace
8 - Piston "A"
9 - O-ring
- Replace
10 - Plate spring
11 - Split retaining ring
- Bent side at right angle faces dished washer
12 - Waved washer
- Equipment depends on version
13 - Outer plate
14 - Coated plate
15 - Thick outer plate
16 - Circlip
- Determining thickness → Available circlips - thickness in mm
