Planetary drive "III" , component overview

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some of the depicted components are part of component groups and are not available separately as replacement part .
Before assembling, check components of planetary gear for wear and damage → Planetary drive "III" .

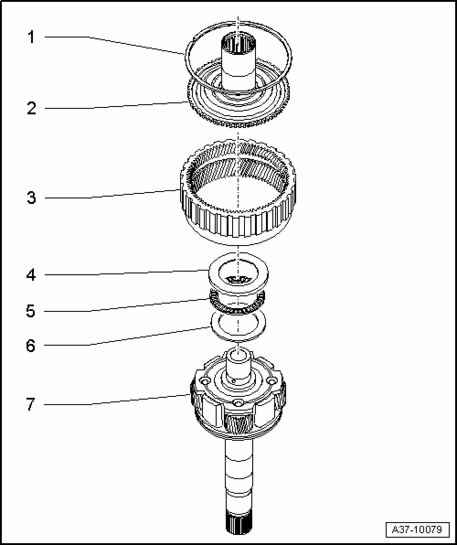

Fig 1: Planetary Drive "III", Component Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Circlip

2 - Shaft

3 - Ring gear "III"

4 - Angle washer

5 - Axial needle bearing

6 - Thrust washer

7 - Planetary carrier "III"
