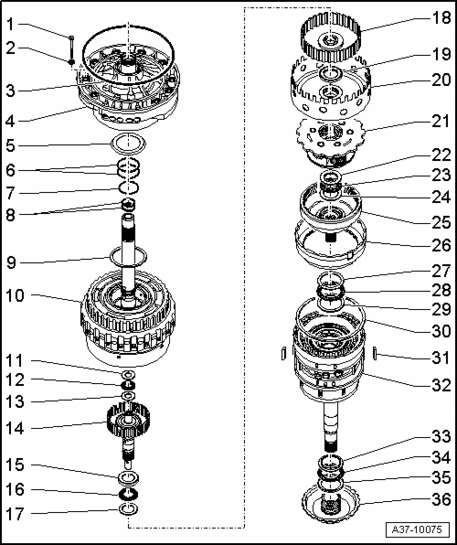

Planetary gear, component overview
WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Some of the depicted components are part of component groups and are not available separately as replacement part.
1 - Bolt, 10 Nm
2 - Sealing washer
- Replace
3 - O-ring
- Replace
4 - ATF supply
- With ATF pump
- Disassembling and assembling → Clutch "C" , disassembling and assembling
5 - Axial needle bearing
6 - Rectangular rings
- Replace
7 - Rectangular ring
- Replace
8 - O-rings
- Replace
9 - Adjustment shim
- Determine thickness → Figure
10 - Tower "II"
- Disassembling and assembling → Tower "II" , disassembling and assembling
11 - Thrust washer
12 - Axial needle bearing
13 - Thrust washer
14 - Intermediate shaft with inner plate carrier
15 - Angle washer
16 - Axial needle bearing
17 - Thrust washer
18 - Sun shaft
19 - Axial needle bearing
20 - Sun gear "I"
- Magnetic, for transmission with hydraulic control "E17" , Transmission Input Speed (RPM) Sensor G182 is then an inductive sensor
- Not magnetic, for transmission with hydraulic control "E18/2" , Transmission Input Speed (RPM) Sensor G182 is then a Hall sensor
21 - Planetary gear set "I" and "II"
22 - Angle washer
23 - Axial needle bearing
24 - Thrust washer
25 - Shaft with ring gear "I"
26 - Ribbed cup
27 - Thrust washer
28 - Axial needle bearing
29 - Angle washer
- Height 2.5 mm incl. collar
30 - Circlip
31 - Fitting key
32 - Tower "I"
- Disassembling and assembling → Tower "I" , disassembling and assembling
33 - Angle washer
- Height 5 mm incl. collar
34 - Axial needle bearing
35 - Angle washer
36 - Sun gear "III"
