Clutch "C" , component overview
WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Some of the depicted components are part of component groups and are not available separately as replacement part .
- Before assembling, check components of clutch "C" for wear and damage → Clutch "C" .

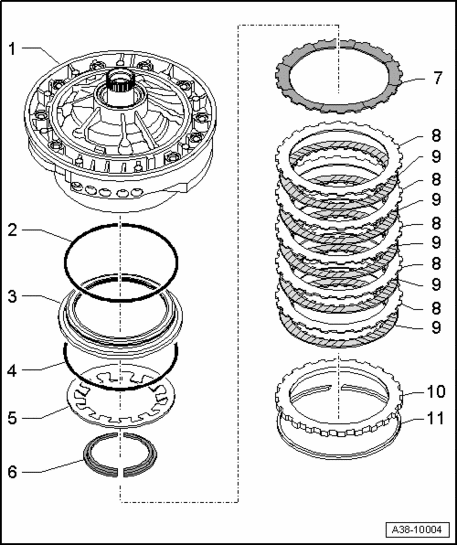

1 - ATF pump
- Disassembling → ATF pump, component overview
2 - O-ring
- Replace
3 - Piston "C"
4 - O-ring
- Replace
5 - Plate spring
6 - Split retaining ring
7 - Waved washer
8 - Outer plates
9 - Coated plates
10 - Thick outer plate
11 - Circlip
- Determining thickness → Available circlips - thickness in mm
