Sealing ring and grooved ball bearing for left drive flange, replacing: Notes

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

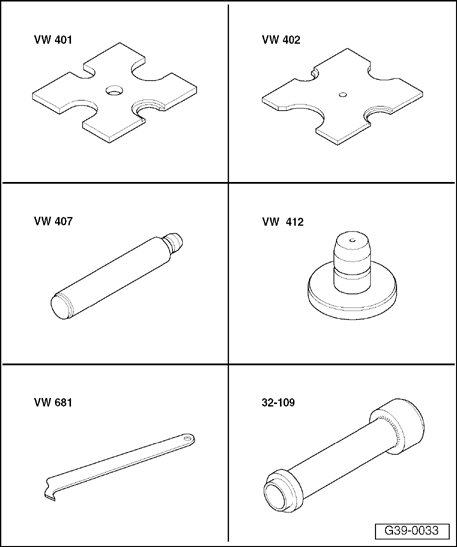

Fig 1: Identifying Special Tools - Sealing Ring And Grooved Ball Bearing For Left Drive Flange, Replacing (1 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Thrust plate VW401
Thrust plate VW402
Punch VW407
Punch VW412

Extractor lever VW681
Driving sleeve 32-109

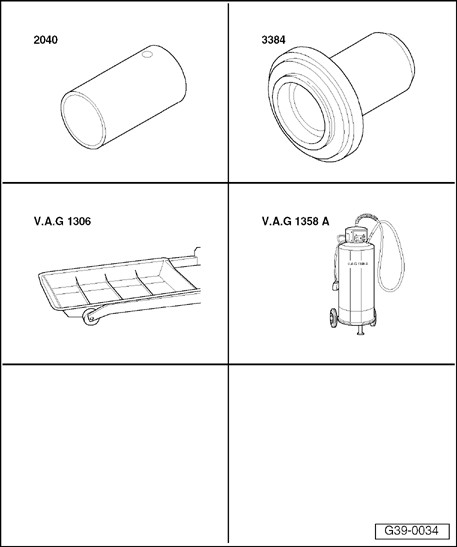

Fig 2: Identifying Special Tools - Sealing Ring And Grooved Ball Bearing For Left Drive Flange, Replacing (2 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Press tube 2040
Assembly mandrel 3384
Drip tray VAG1306
Oil siphoning unit VAG1358A
