Seal for front final drive, replacing: Installing

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Installation is reverse of removal, noting the following:

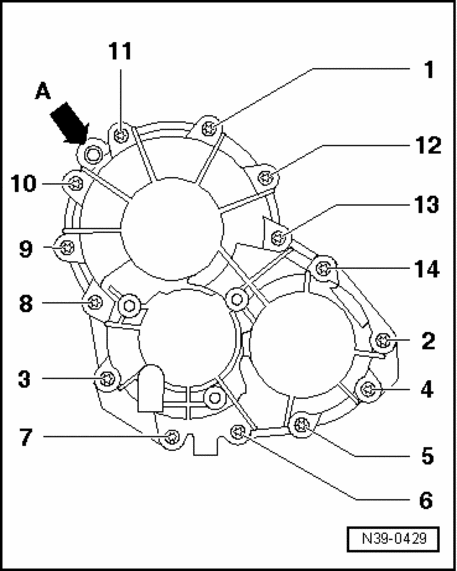

Fig 1: Identifying Alignment Sleeve And Front Final Drive Cover Bolts
GW00006173Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • If installing the intermediate flange to the output shaft carelessly, the sealing lips of the sealing ring can be damaged.
