Sealing ring in intermediate flange for front final drive, replacing: Installing
WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Installation is reverse of removal, noting the following:
- Check seal seat in intermediate flange for damage; rework if necessary.
- Coat outer edge and sealing lip of oil seal with gear oil.

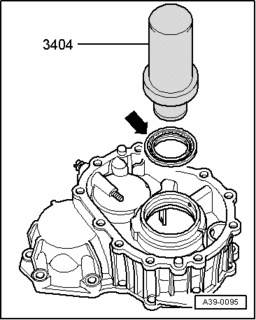

- Slide sealing ring onto thrust piece 3404 so that the larger and projecting outer ring (arrow) of sealing ring faces tool.
- Drive in sealing ring up to thrust piece 3404 stop.
NOTE:
- If installing the intermediate flange to the output shaft carelessly, the sealing lip of the sealing ring can be damaged.
- Fill area between sealing lip and dust lip halfway with sealing grease G 052 128 A1.
- Installing intermediate flange for front final drive → Seal for front final drive, replacing .
- Install center differential.
