Transmission diagram (All Wheel Drive (AWD) vehicles)

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

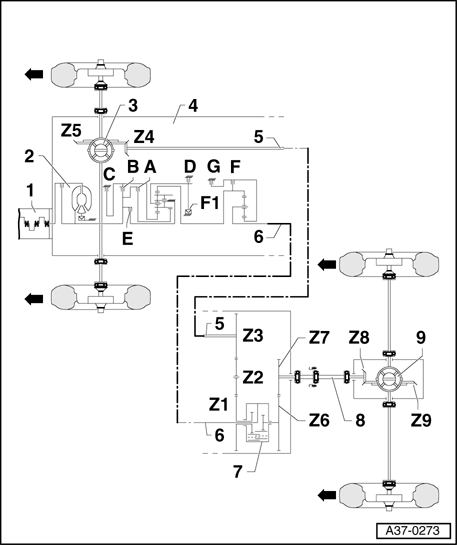

Fig 1: Transmission Diagram (All Wheel Drive (AWD) Vehicles)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

A - Clutch A

B - Clutch B

E - Clutch E

F - Clutch F

C - Brake C

D - Brake D

G - Brake G

F1 - Freewheel 1

1 - Engine

2 - Torque converter with lock-up clutch

3 - Front differential

4 - Automatic transmission

5 - Drive pinion

6 - Output shaft

7 - Center differential

8 - Driveshaft

9 - Rear differential

Z1, Z2 and Z3 = spur gears of front intermediate drive; ratio → Code letters, allocation, ratios, equipment

Z4, Z5 = front gear set; ratio → Code letters, allocation, ratios, equipment

Z6, Z7 = spur gears of rear intermediate drive; ratio All Wheel Drive (AWD)

Z8, Z9 = rear ring gear, ratio All Wheel Drive (AWD)

NOTE:

Arrows point in direction of travel.
