Sensor for transmission RPM G182

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

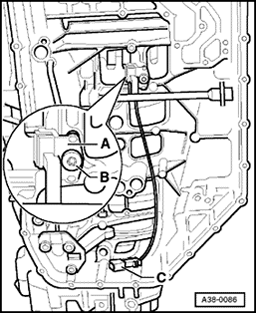

Fig 1: Sensor For Transmission RPM (Transmissions With Hydraulic Regulation -E18/2-)
GW00006028Courtesy of VOLKSWAGEN UNITED STATES, INC.

Sensor for transmission RPM - A  - is fastened to transmission housing behind valve body. This sensor is a Hall sensor.

Removing and installing Sensor for transmission RPM G182

→ Sensor for transmission RPM G182 , removing and installing
