Recommended sequence for adjusting gear set

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2007 Audi S4, 2007 Audi RS 4, and 2006 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

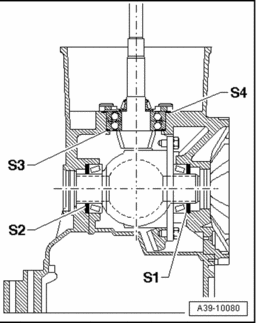

Fig 1: Recommended Sequence For Adjusting Gear Set

Courtesy of VOLKSWAGEN UNITED STATES, INC.

If drive pinion and gear ring have to be adjusted, the following sequence is recommended for maximum efficiency:

Determine shim " S ₃ " so that the dimension from center of ring gear to facing drive of drive pinion corresponds to the installation dimension determined during production.
Determine shim " S ₄ " for double angular contact ball bearing preload.
Total shim thickness " S _total " Determine (S ₁ plus S ₂ ) for specified preload of tapered roller bearing/differential.
Total shim thickness " S _total " Distribute (S ₁ plus S ₂ ) so that the specified torsional backlash is present between ring gear and drive pinion.
