Pressing off left and right tapered roller bearing inner race

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2007 Audi S4, 2007 Audi RS 4, and 2006 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

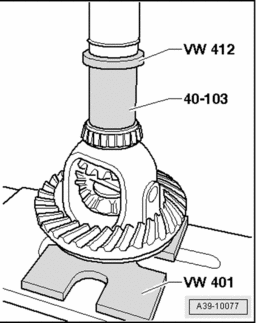

Fig 1: Pressing Off Left And Right Tapered Roller Bearing Inner Race
GW00019325Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • Left and right tapered roller bearing inner races are pressed off with the same tools.
CAUTION: Wear protective gloves!
