Assembly of locking collar/synchronizer hub for 1st and 2nd gear

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2007 Audi S4, 2007 Audi RS 4, and 2006 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Assembly Of Locking Collar/Synchronizer Hub For 1st And 2nd Gear

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Place locking collar - A - (in installation location 1st and 2nd gear locking collar installation location ) together with shifter fork for 1st/2nd gear - C - over synchronizer hub - B -.

NOTE:

The locking collar only fits in one position over the synchronizer hub, the splines - arrow 1 - and - arrow 2 - have different widths. Remove synchronizer hub - B - from hollow shaft and rotate, if necessary.

Then place thrust piece in synchronizer hub notches and push thrust piece in direction of - arrow 3 - into locking collar notches. Locking collar must be held in middle position.

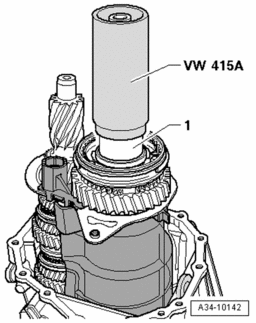

Fig 2: Warming 1st Gear Selector Gear Inner Race/Needle Bearing & Attaching And Drive On To Stop

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Warm 1st gear selector gear inner race/needle bearing - 1 - to approx. 100°C, attach and drive on to stop.
