Assemble locking collar and reverse gear selector gear
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2007 Audi S4, 2007 Audi RS 4, and 2006 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

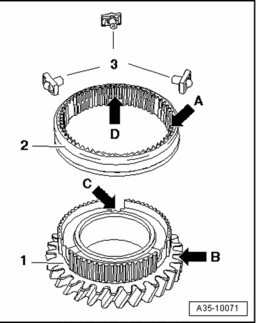

- Gear wheel for reverse gear
- Locking collar
- Thrust piece
- Slide locking collar over reverse gear selector gear.
Installation position:
- Pointed teeth - arrow A - in locking collar point opposite reverse gear selector gear drive splines - arrow B -.
- Thrust piece notches - 3 - in reverse gear selector gear - arrow C - and locking collar - arrow D - must align.
- Then place thrust piece in reverse gear selector gear notches and press thrust piece in locking collar notches.
Fig 2: Placing 1st Gear Selector Gear With Needle Bearing And Synchronizer Rings On Inner Race/Needle Bearing
- Then place 1st gear selector gear - C - with needle bearing and synchronizer rings on inner race/needle bearing.
- Place thrust washer for 1st gear and reverse gear on hollow shaft.

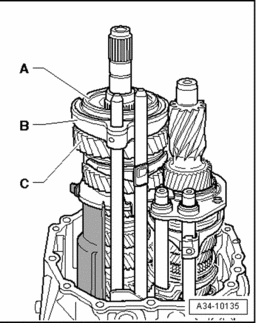

- Attach reverse gear selector gear - A - (with locking collar mounted) together with reverse gear selector rod - B -.
- Place reverse shaft - 1 - with notch - arrow A - on tab - arrow B - on reverse shaft mount - 2 -.

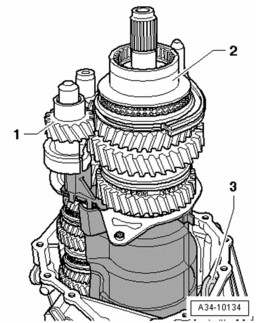

- Place reverse gear - 1 - with needle bearing in reverse shaft, when doing so, reverse gear splines must face toward reverse gear selector gear.
- Place clutch hub - 2 - with needle bearing and synchronizer rings on hollow shaft.
- Place magnet - 3 - in transmission housing rib.
- Bring selector rods into neutral position - arrow -.
- Drive on selector rod securing bushings - 1 - to - 4 - with tube VW 421 to stop.
NOTE:
- Do not interchange securing bushings for selector rods and selector shaft.
- Check whether or not there are 2 alignment pins in transmission cover for centering transmission cover/housing.
- Apply sealing paste AMV 188 001 02 evenly and not to thick on transmission housing joint surfaces at transmission cover.

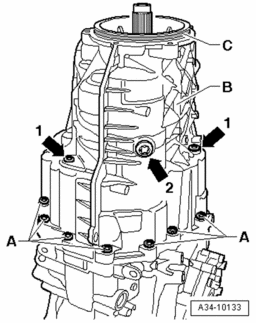

Fig 6: Identifying Bolts For Securing Bearing Bracket, Bolt For Securing Reverse Shaft, Connection Screws & O-Ring
- Place transmission cover - B - on transmission housing. Do not screw in screws - A - yet.
- Hand-tighten bolt - arrow 2 - in reverse shaft.
- Hand-tighten new bolts - arrow 1 - in bearing bracket.
- Then tighten the 13 bolts - A - to 24 Nm.
- Then tighten bolts - arrows 1 - to 27 Nm and bolt - arrow 2 - to 24 Nm.
- Coat new O-ring - C - with transmission fluid and insert in surrounding groove in transmission cover.
- Then rotate transmission horizontally in assembly bracket.
- Secure hollow shaft by moving selector rods - 1 - to - 4 - in direction of - arrow -.
- Then tighten twelve-point nut hollow shaft to 75 Nm.
A - Torque wrench
- Then shift selector rods into neutral position.
- Turn transmission in assembly bracket with transmission cover upward.

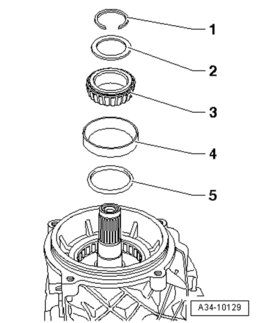

- Place spacer ring - 5 - on hollow shaft twelve-point nut.
- Install inner race - 4 - and outer race - 3 -. These components are push fit and can be removed by hand.
If you have replaced the drive pinion (gear set), you must redetermine the thickness of the circlip - 1 - and shim(s) - 2 - for tapered roller bearing on drive pinion → Determine thickness of circlip and shim(s) as follows: .
