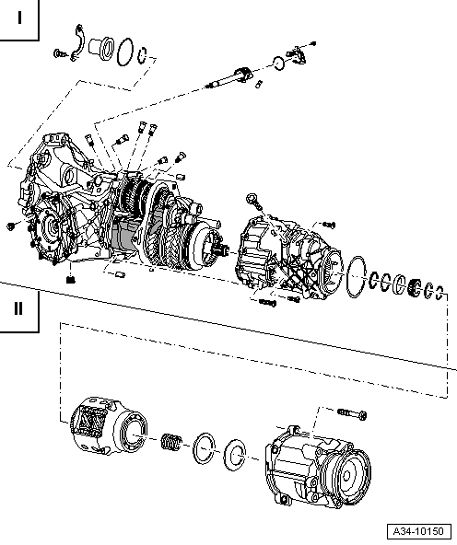

Assembly overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2007 Audi S4, 2007 Audi RS 4, and 2006 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
Assembly sequence → Assembly sequence
I - Transmission cover and selector shaft, removing and installing → Transmission cover and selector shaft, removing and installing
- First, second and reverse gear with selector rod, removing and installing → First, second and reverse gears, removing and installing - assembly overview
- Input shaft, hollow shaft, drive pinion and selector rods, removing and installing → Input shaft, hollow shaft, drive pinion and selector rods, removing and installing - assembly overview
II - Torsen housing and torsen differential, removing and installing → Torsen housing and torsen differential, removing and installing - assembly overview
