Position of shims

WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Table of adjustments when replacing individual components of final drive → Table of adjustments .

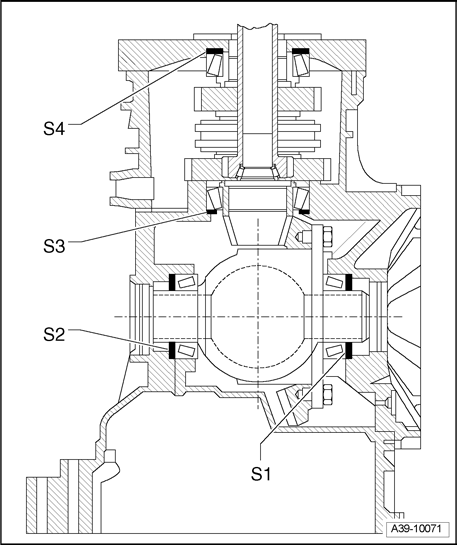

Fig 1: Position Of Shims

Courtesy of VOLKSWAGEN UNITED STATES, INC.

S1 - Shim for ring gear in cover for final drive

S2 - Adjustment shim for ring gear in transmission housing

S3 - Adjustment shim for pinion shaft in transmission housing

S4 - Shim for pinion shaft in bearing housing
