Available shims for "S1"
WARNING: This page is about a different car, the 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
| Shim thickness (mm) 1) | ||
| 0.45 | 0.65 | 0.85 |
| 0.50 | 0.70 | 0.90 |
| 0.55 | 0.75 | |
| 0.60 | 0.80 | |
1) Due to shim tolerances any shim thickness can be obtained. Insert 2 shims if required.
Checking measurement

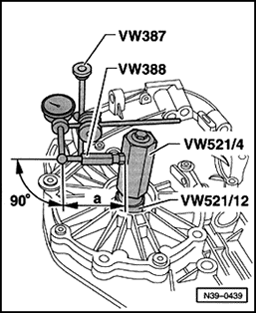

- After shims "S1" and "S2" have been installed, rotate differential 5 turns in each direction so that tapered roller bearings slip into place.
- Measure torsional side clearance 4 times at circumference.
- Specification: 0.12 to 0.22 mm
NOTE:
- If torsional side clearance is outside tolerance, repeat adjustments. But do not change total shim thickness "Stotal".
- Individual measured values may only differ from one another by max. 0.06 mm.
