Selector rod and front push rod, servicing

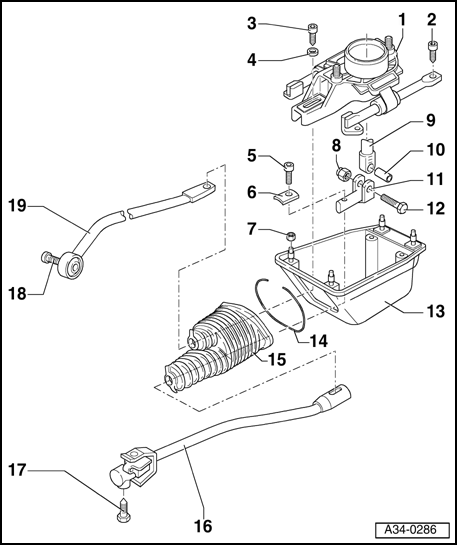

Fig 1: Shift Rod And Pivot Rod, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rear push rod

2 - Bolt, 6 Nm

• Qty. 4
• For fixing rear push rod to gear shift housing

3 - Hex socket-head bolt, 25Nm

4 - Washer

5 - Hex socket-head bolt, 25Nm

6 - Clamp

7 - Hex nut, 10 Nm

• Qty. 4
• For fixing gear shift housing to body

Fig 2: Shift Rod And Pivot Rod, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

8 - Hex nut, 10 Nm

• Self-locking
• Always replace

9 - Gear shift

10 - Spacer tube

• Lubricate with polycarbamide grease G 052 142 A2

11 - Selector fork

12 - Bolt

13 - Gear shift housing

14 - Tensioning ring

15 - Boot

• Remove catalytic converter and front heat shield before removal and assembly

Fig 3: Shift Rod And Pivot Rod, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

16 - Selector rod

• With gearshift linkage

17 - Bolt, 23 Nm

• Self-locking
• Always replace

18 - Hex socket-head bolt, 40Nm

• Cannot be removed from mounting bushing of front push rod

19 - Front push rod
