Part II

WARNING: This page is about a different car, the 2006 Audi A4, 2005 Audi A4, 2004 Audi A4, and 2003 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

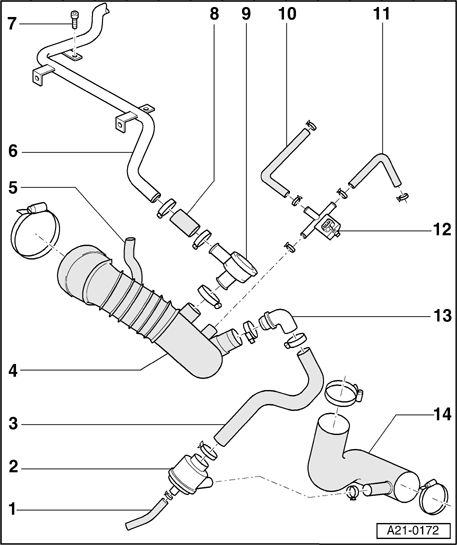

Fig 1: Turbocharger, Removing And Installing - Overview (Part II)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Vacuum hose

To Recirculating valve for turbocharger N249

2 - Mechanical air recirculation valve

Checking → Mechanical air recirculation valve, checking

3 - Hose

To air recirculation valve

4 - Air hose

To turbocharger connection

5 - Hose

To EVAP valve

6 - Line

To crankcase breather

7 - 10 Nm

8 - Hose

To crankcase breather line

9 - Pressure control valve

For crankcase breather

10 - Hose

To turbocharger

11 - Hose

To vacuum unit for charge pressure control valve

12 - Wastegate bypass regulator valve N75

13 - Angle piece

14 - Hose

To turbocharger
